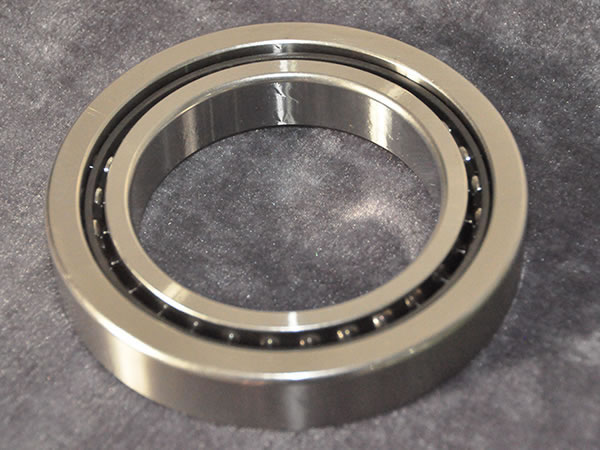

| BTR10S Series Angular Contact Thrust Ball Bearing | ||||||
| Model | Boundary Dimensions | Load Rating | Limiting Speed | Cage Material | ||
| d | D | B | Cr Cor | Grease Oil | ||
| 50 | 80 | 28.5 | 17.4 31.5 | 10000 13100 | Nylon | |
| 55 | 90 | 33 | 21.6 40.0 | 9000 11800 | Nylon | |
| 60 | 95 | 33 | 22.4 43.5 | 8400 11000 | Nylon | |
| 65 | 100 | 33 | 23.1 47.0 | 7900 10400 | Nylon | |
| 70 | 110 | 36 | 32.0 63.0 | 7300 9500 | Nylon | |
| 75 | 115 | 36 | 32.5 65.5 | 6900 9000 | Nylon | |
| 80 | 125 | 40.5 | 32.0 68.5 | 6400 8300 | Nylon | |
| 85 | 130 | 40.5 | 32.5 71.5 | 6100 8000 | Nylon | |
| 90 | 140 | 45 | 50.0 105 | 5700 7400 | Nylon | |
| 95 | 145 | 45 | 43.0 96.5 | 6300 8000 | Nylon | |
| 100 | 150 | 45 | 43.5 100 | 5200 6800 | Nylon | |
| 105 | 160 | 49.5 | 49.5 115 | 5000 65000 | Nylon | |
| 110 | 170 | 54 | 55.5 131 | 4700 6100 | Nylon | |
| 120 | 180 | 54 | 57.0 141 | 4400 5700 | Nylon | |
| 130 | 200 | 63 | 72.5 172 | 4000 5200 | Nylon | |
| 140 | 210 | 63 | 78.5 200 | 4300 5500 | Nylon | |
| 150 | 225 | 67.5 | 92.5 234 | 4000 5100 | Nylon | |
| 160 | 240 | 72 | 98.5 250 | 3800 4800 | Copper | |
| 170 | 260 | 81 | 115 295 | 3500 4500 | Copper | |
| 180 | 280 | 90 | 151 385 | 3300 4200 | Copper | |
| 190 | 290 | 90 | 151 390 | 3200 4000 | Copper | |
| 200 | 310 | 99 | 169 444 | 3000 3800 | Copper | |
